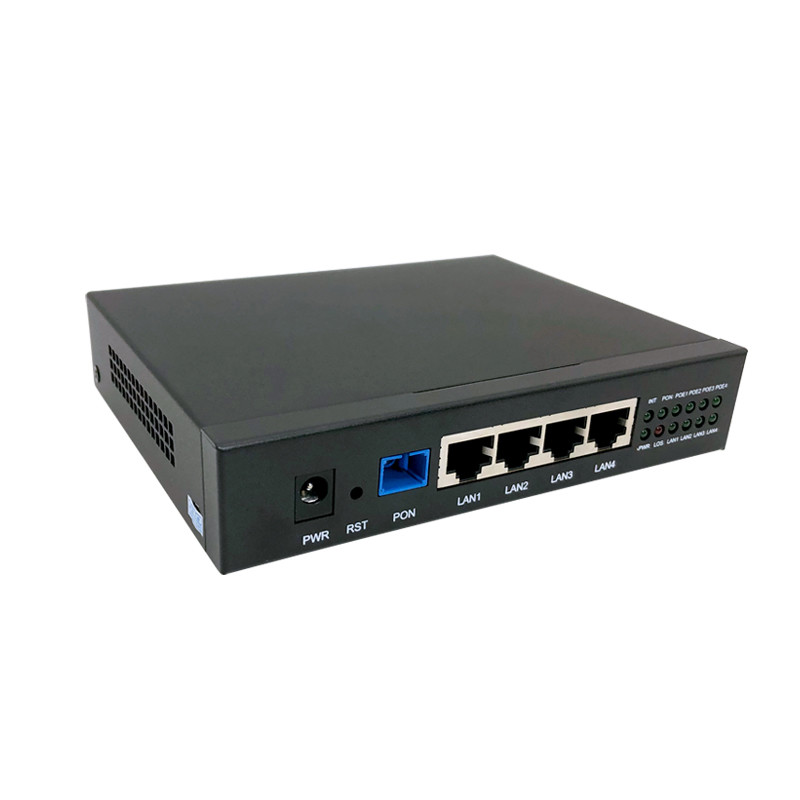

GPON 4 Port ONU Full Gigabit IEEE802.3af PoE ONU For CCTV Camera

Brand Name : ZIKUN

Model Number : ZC-500G

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Delivery Time : 5-15 work days

GPONinterface : XPON ONU

Optical connector : SC/UPC

Dimensions (H x W x D) : 2.58CM*15.3CM*13CM

Manage : Web/Telnet/OMCI/OAM

User Network Interface : 4 GE

Ethernet Port : Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

Contact Now

ZIKUN GPON ONU 4 Ports Full Gigabit IEEE802.3af PoE ONU For CCTV Camera

Functions

Automatic Service Provisioning

  • Authentication exemption
  • XML/OMCI or OAM

SFU ONU

  • Bridging mode
  • Well connect with OLTs of mainstream (HuaweiZTEFH)

Layer 3 Features

  • IPv4/IPv6
  • NAT,DMZ,DDNS

Layer 2 Management

  • 802.1D&802.1ad bridging
  • 802.1p CoS
  • 802.1Q VLAN

Description

4GE POE XPON ONU with reverse PoE designed for fulfilling FTTH request of telecom operators, internet access of SOHO. This product is support GPON model, which has high performance/price ratio, and the technology of layer 2 Ethernet switch as well.

It is highly reliable and easy to maintain, with guaranteed QoS.ONU is powered by the power sourcing equipment (PSE) deployed in users' residences, applied in scenarios where there is no alternating current (AC) power supply in corridors.

​ZC-500P | 4 GE(PoE/PoE+)

GPON 4 Port ONU Full Gigabit IEEE802.3af PoE ONU For CCTV Camera

Specification
Dimensions 12.58CM*15.3CM*13CM(L×W×H)
Weight About 0.7Kg
Operating temperature -20℃～50℃
Operating humidity 10%～90%(non-condensing)
Power adapter input 100 V to 240 V AC, 50 Hz/60 Hz
System power supply DC 48V/2A
UNI 4*GE (PoE)
NNI 1*GPON/EPON
Static power consumption 7W
Typical power consumption 13W (PoE port without PD)
Maximum power consumption

9 W (POE port without PD);

77 W (POE port with PD having the maximum powerconsumption)
Maximum PoE output power 61.6 W (supported by 4*RJ45 port)

Indicators

LED Mark Status Description
Power POWER On The device is powered up.
Off The device is powered down.
Registration PON On The device is registered to the PON system.
Off Device is not registered to the PON system.
Blink Device registration is incorrect.
Optical Signal Loss LOS Blink Device does not receive optical signals.
Off Device has received optical signal.
LAN LAN1～4 On Port is connected properly.
Off Port connection exception or not connected.
Blink Port is sending or/and receiving data.
